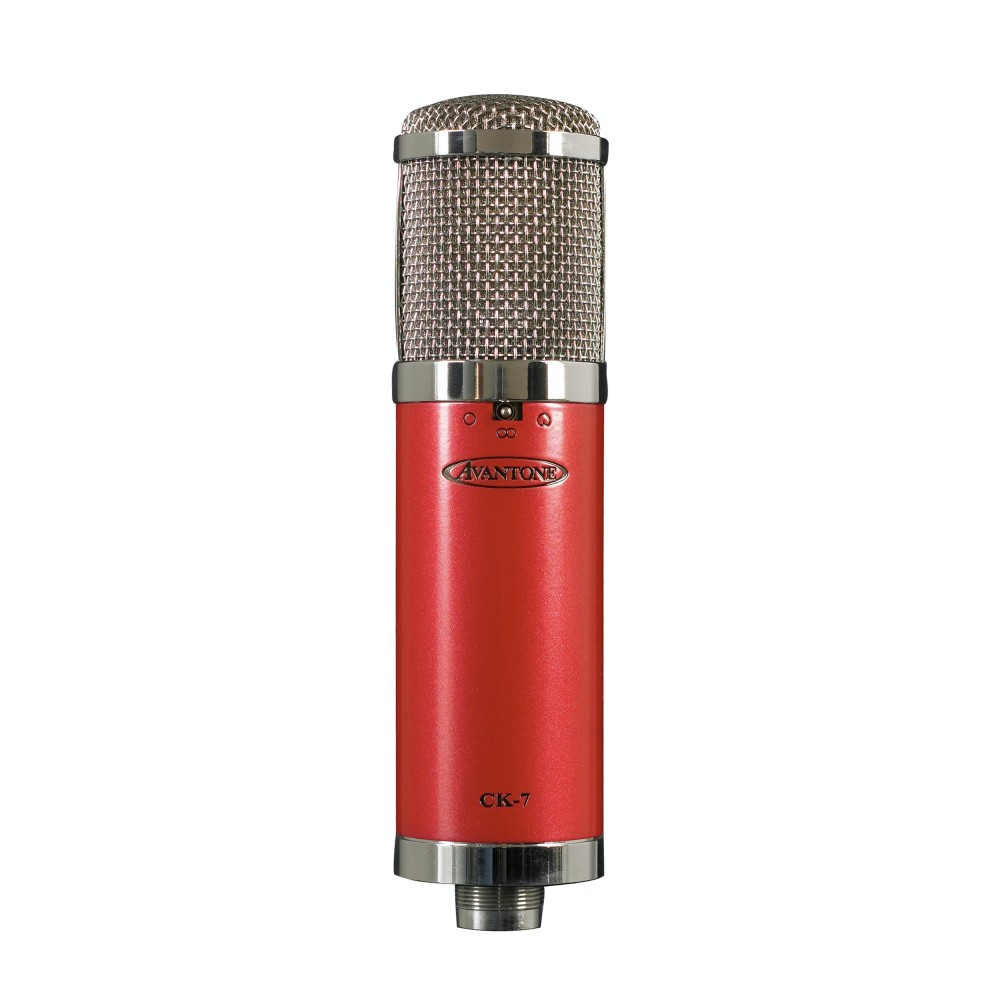

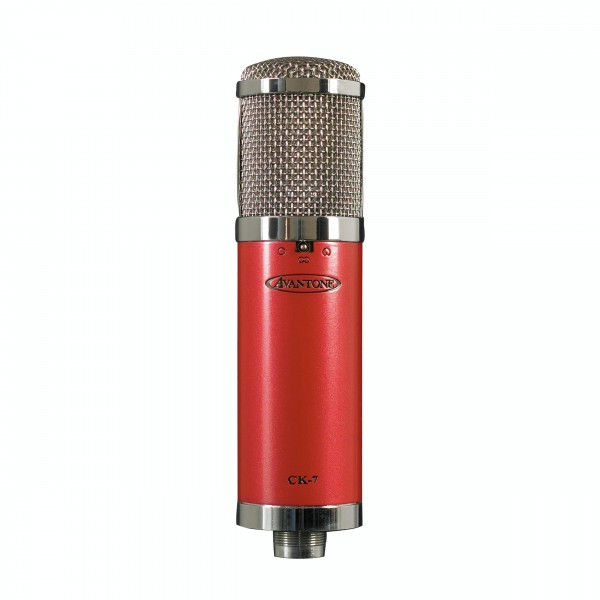

Large Capsule Multi-Pattern FET Condenser Microphone

Tech Spec –
TYPE: True Condenser
POLAR PATTERN(S): Cardioid , Omni , Figure 8
CAPSULE: 34mm 6-micron capsule
FREQUENCY RESPONSE: 20-20,000 Hz +/- 3dB
OUTPUT IMPEDANCE: <=250 Ohms
SENSITIVITY: -38 dB (0 dB=1V/Pa)
S/N RATIO: 77dB re 1Pa
MAXIMUM SPL: 139dB (0.5% THD @1000Hz)
EQUIVALENT NOISE LEVEL: (A-Weighted per IEC 286-4) < 16 dB
OUTPUT CONNECTOR: Male XLR 3-pin
HIGH-PASS SWITCH: 80 Hz 6dB/octave
ATTENUATION SWITCH: -10 dB
POWER REQUIREMENT: Standard 48 Volt Phantom / 5mA

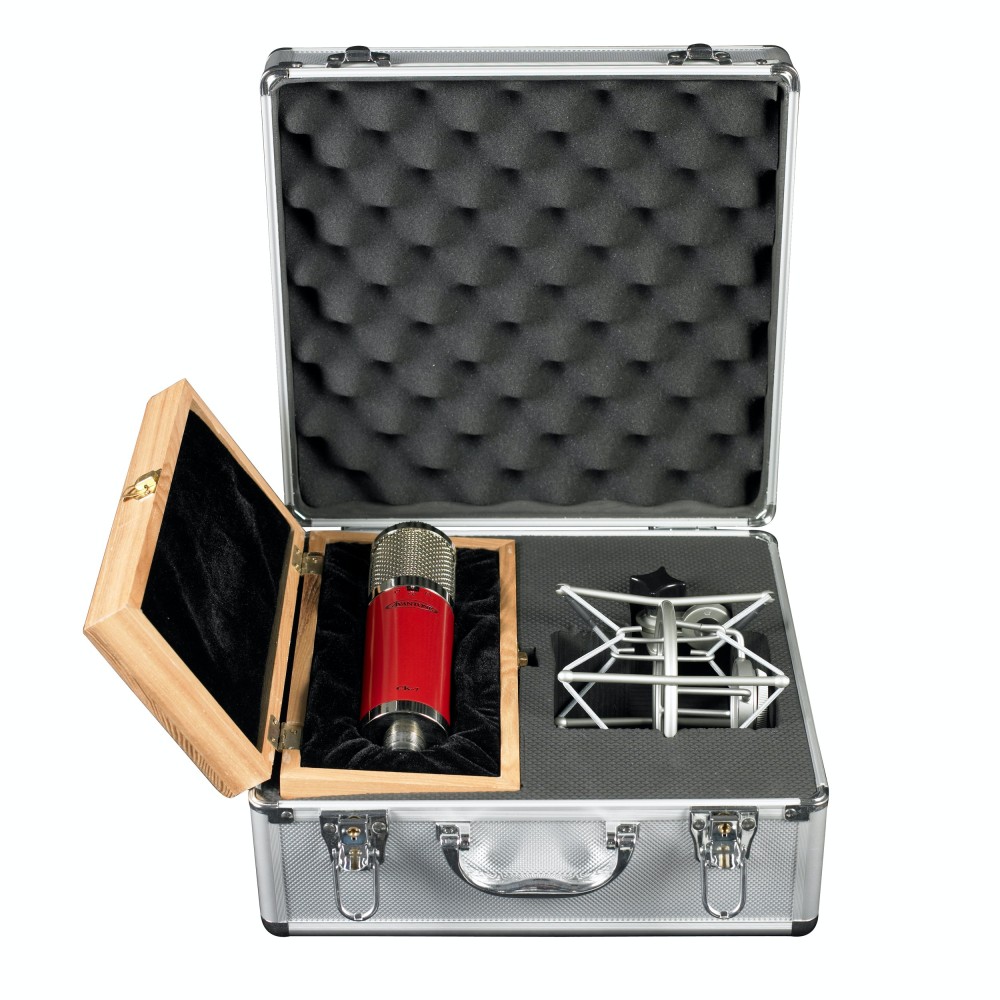

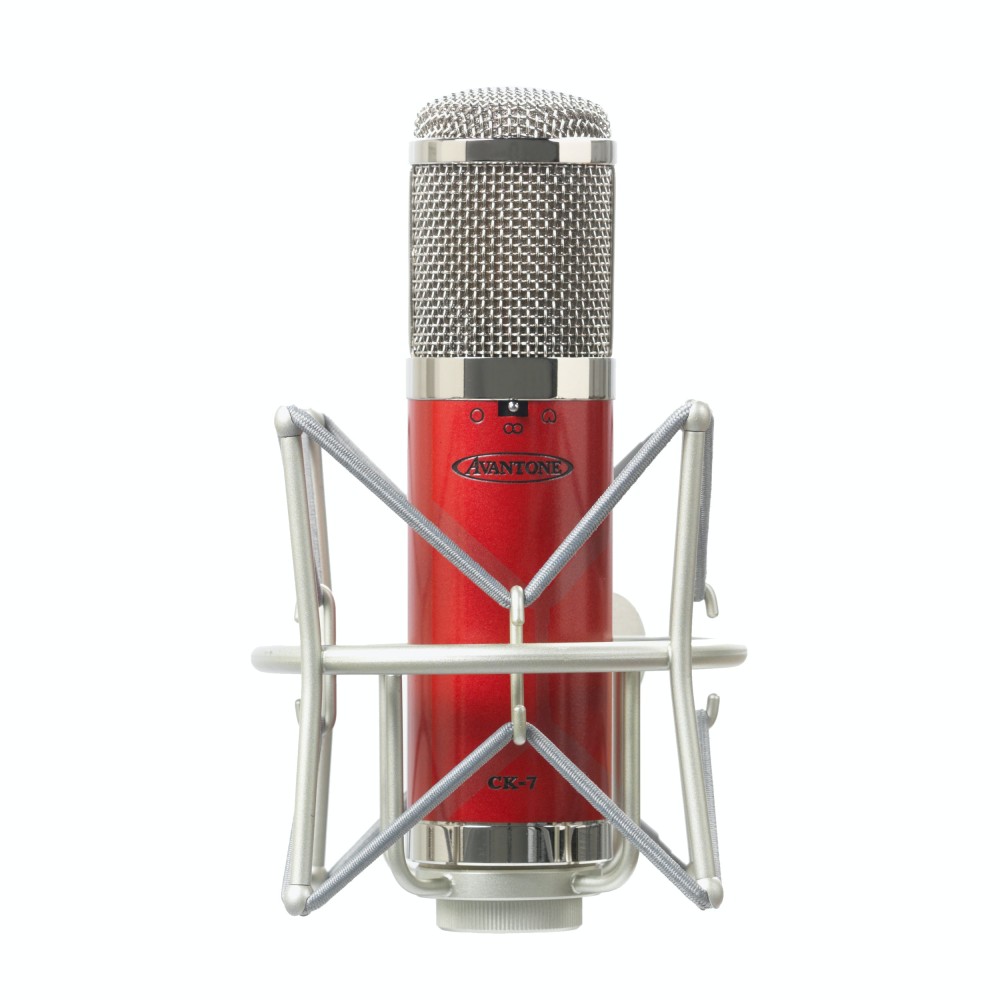

INCLUDED ACCESSORIES: Shockmount, Wooden Box in Metal Carrying Case
DIMENSIONS: 187mm x 51mm / 7.5" x 2"
WEIGHT: .65 kgs / 1.4 lbs.
FINISH: Polished Nickel trim / Metallic Cabernet Red Body
