Complete Drum Microphone Kits


CDMK-4 4-Mic Drum Microphone Kit –
1 Mondo Kick Drum Microphone
1 ADM Snare Drum Microphone
2 ATOM Tom Microphone
3 PK-1 Pro-Klamp Drum Rim Microphone Mounts
4 SSM Metal Shockmounts

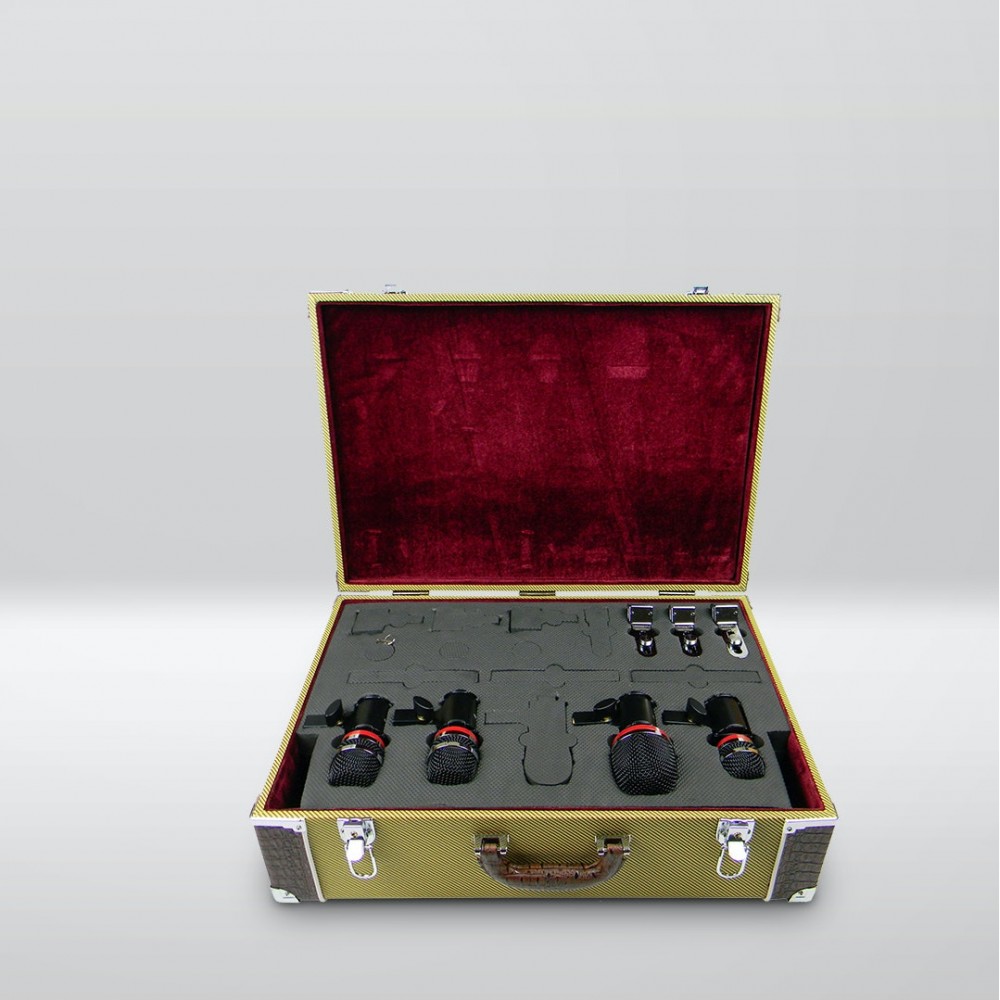

Custom Heavy-Duty Locking Tweed Vintage Case

Tech Spec –
MONDO Kick Mic
TYPE: Dynamic
POLAR PATTERN(S): Cardioid
FREQUENCY RESPONSE: 20Hz - 15kHz
OUTPUT IMPEDANCE: 210 Ohms
MAXIMUM SPL: 145dB
OUTPUT CONNECTOR: Male XLR 3 pin
POWER REQUIREMENT: None
WEIGHT: 0.5kg (16oz)
FINISH: Cabernet / Black / Nickel

ADM Snare Mic
TYPE: Dynamic
POLAR PATTERN(S): Cardioid
FREQUENCY RESPONSE: 50Hz - 16kHz
OUTPUT IMPEDANCE: 520 Ohms
MAXIMUM SPL: 145dB
OUTPUT CONNECTOR: Male XLR 3 pin
POWER REQUIREMENT: None
WEIGHT: 0.35kg (11oz)
FINISH: Cabernet / Black / Nickel

ATOM Tom Mic
TYPE: Dynamic
POLAR PATTERN(S): Cardioid
FREQUENCY RESPONSE: 30Hz - 15kHz
OUTPUT IMPEDANCE: 220 Ohms
MAXIMUM SPL: 145dB
OUTPUT CONNECTOR: Male XLR 3 pin
POWER REQUIREMENT: None
WEIGHT: 0.4kg (13oz)
FINISH: Cabernet / Black / Nickel

CK-1 FET Mic
TYPE: True Condenser
POLAR PATTERN(S): Cardioid & Hyper-Cardioid
FREQUENCY RESPONSE: 30Hz - 15kHz
OUTPUT IMPEDANCE: 200 Ohms
MAXIMUM SPL: 138dB (0.5% THD@1000Hz)
OUTPUT CONNECTOR: Male XLR 3 pin
POWER REQUIREMENT: Standard 48v phantom
WEIGHT: 0.16kg (5oz)
FINISH: Cabernet / Nickel
