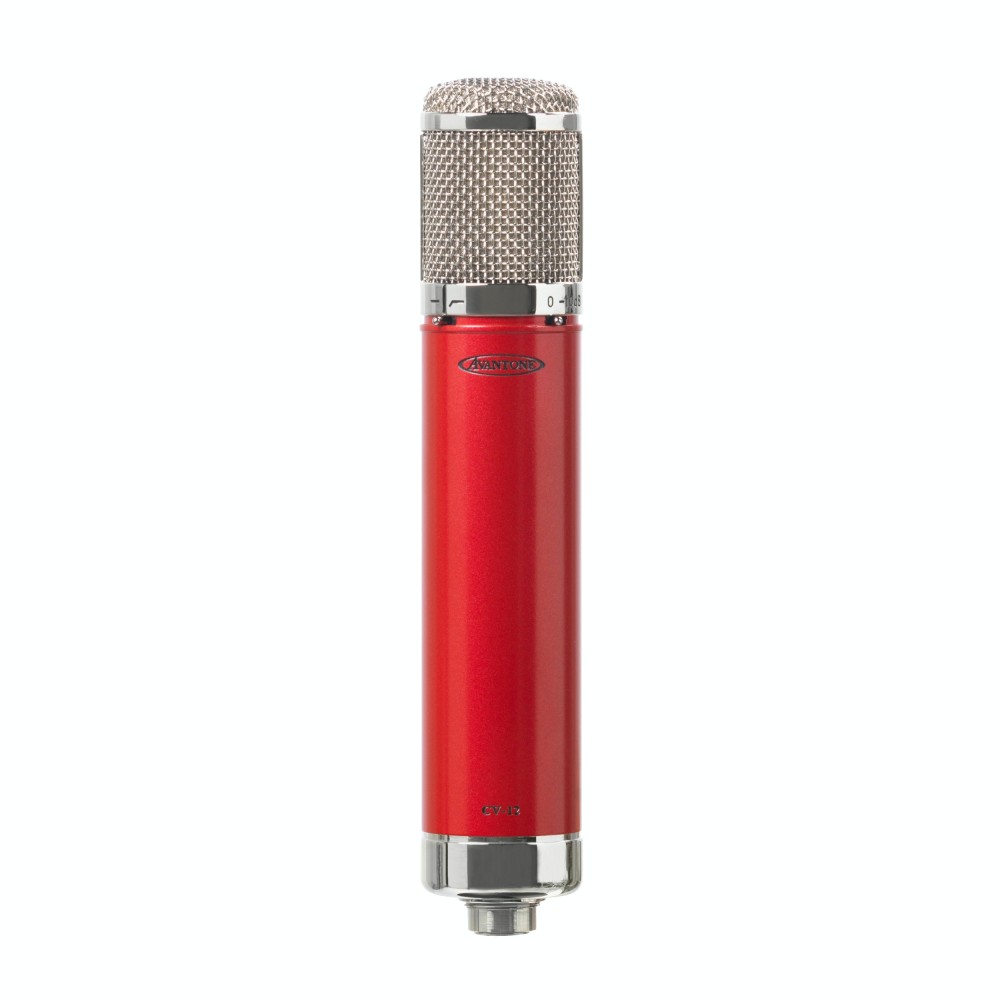

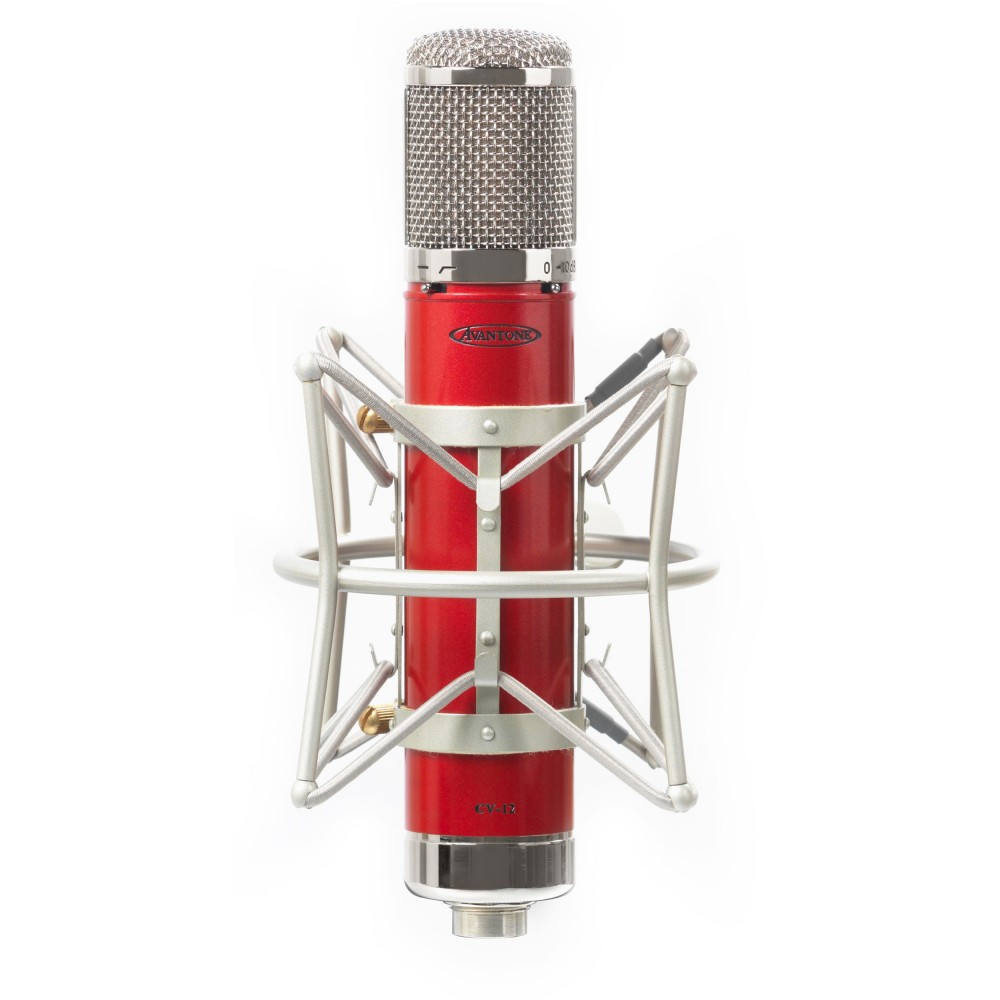

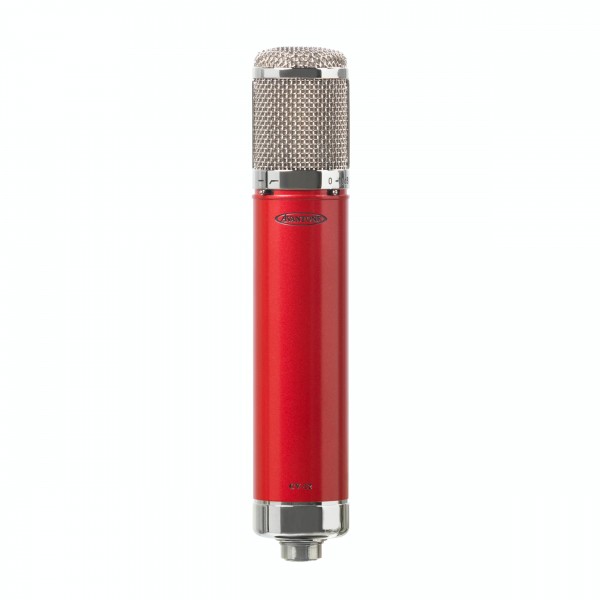

Tube Condenser Microphone

Tech Spec –
TYPE: Tube-Type True Condenser Microphone
CAPSULE: Dual-sided 32mm center-terminated gold-sputtered Mylar (6 micron)
POLAR PATTERNS: 9 patterns selectable at PS-12 power supply
FREQUENCY RESPONSE: 20Hz - 20kHz +/- 3dB
OUTPUT IMPEDANCE: <=250 Ohms / transformer isolated
MAXIMUM SPL: 136dB (0.5% THD @1000Hz) 146dB with pad engaged
EQUIVALENT NOISE LEVEL: <17dB
S/N RATIO: 78dB
SENSITIVITY: -35dB
OUTPUT CONNECTOR: Male XLR 7 pin w/ special power supply & cables
TUBE TYPE: 6072A (mil-spec). Lower noise than the more common 12AY7
HIGH-PASS SWITCH: 80 Hz 6dB/octave Switch
ATTENUATION SWITCH: -10dB Switch

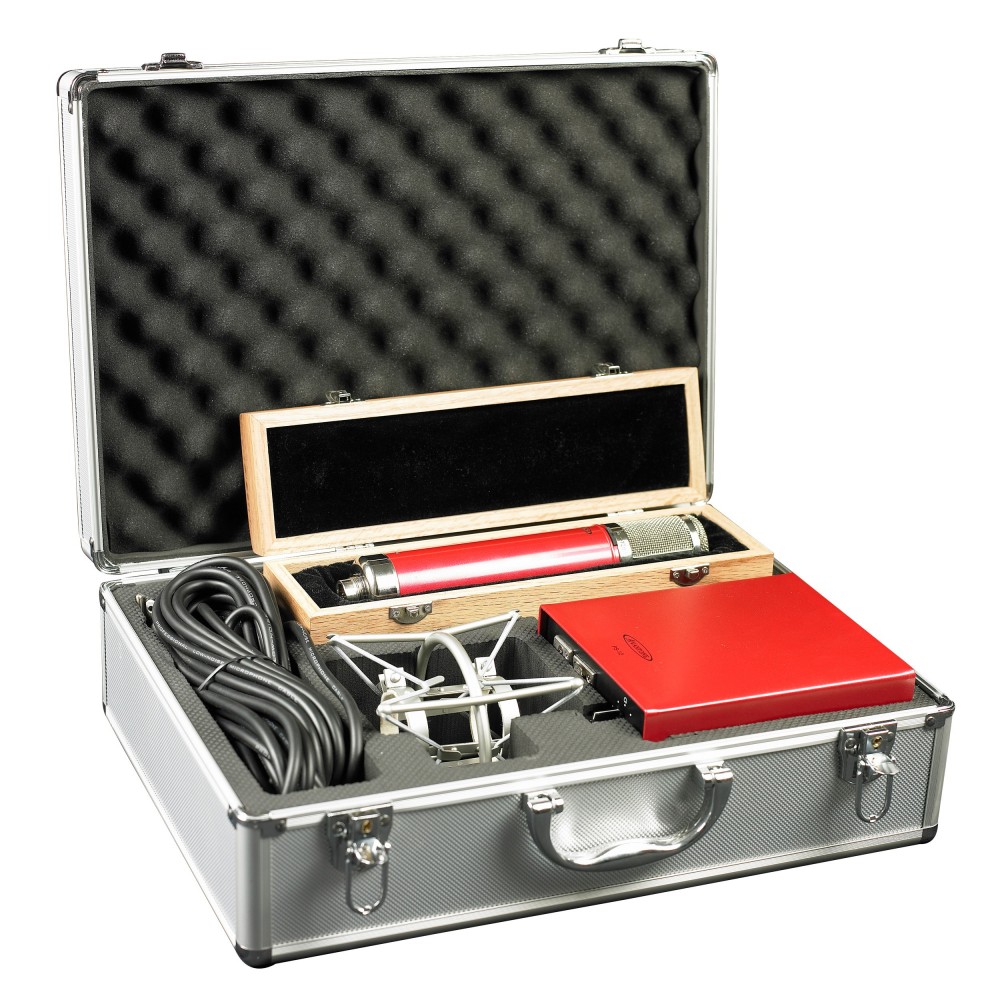

POWER REQUIREMENTS: Dedicated PS-12 Power Supply w/ selectable 115/230 VAC capability
FINISH: Polished Nickel trim / Metallic Cabernet Red Body
WEIGHT: .8 kgs / 1.8 lbs.
DIMENSIONS: 237mm x 46mm / 9.5" x 1.8"
