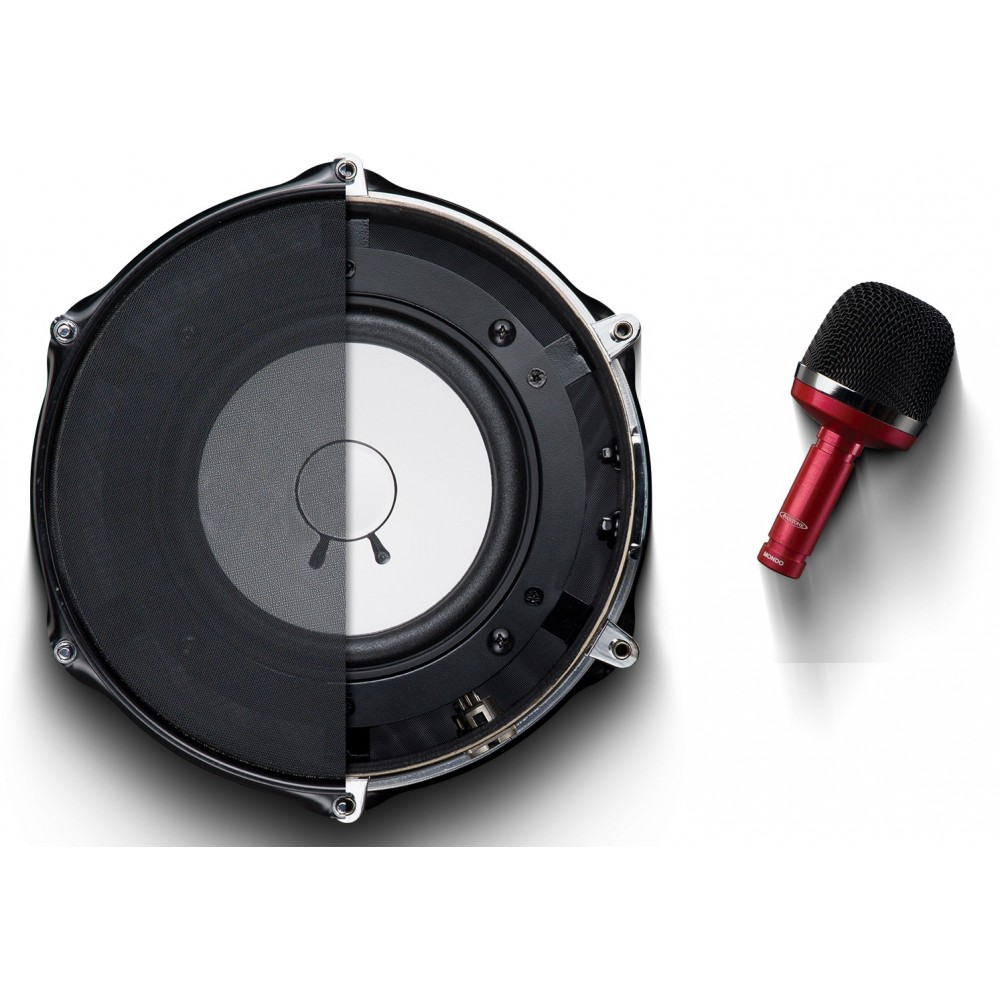

Complete Kick Drum Microphone Bundle
Mondo Includes SSM Shockmount

Tech Spec –

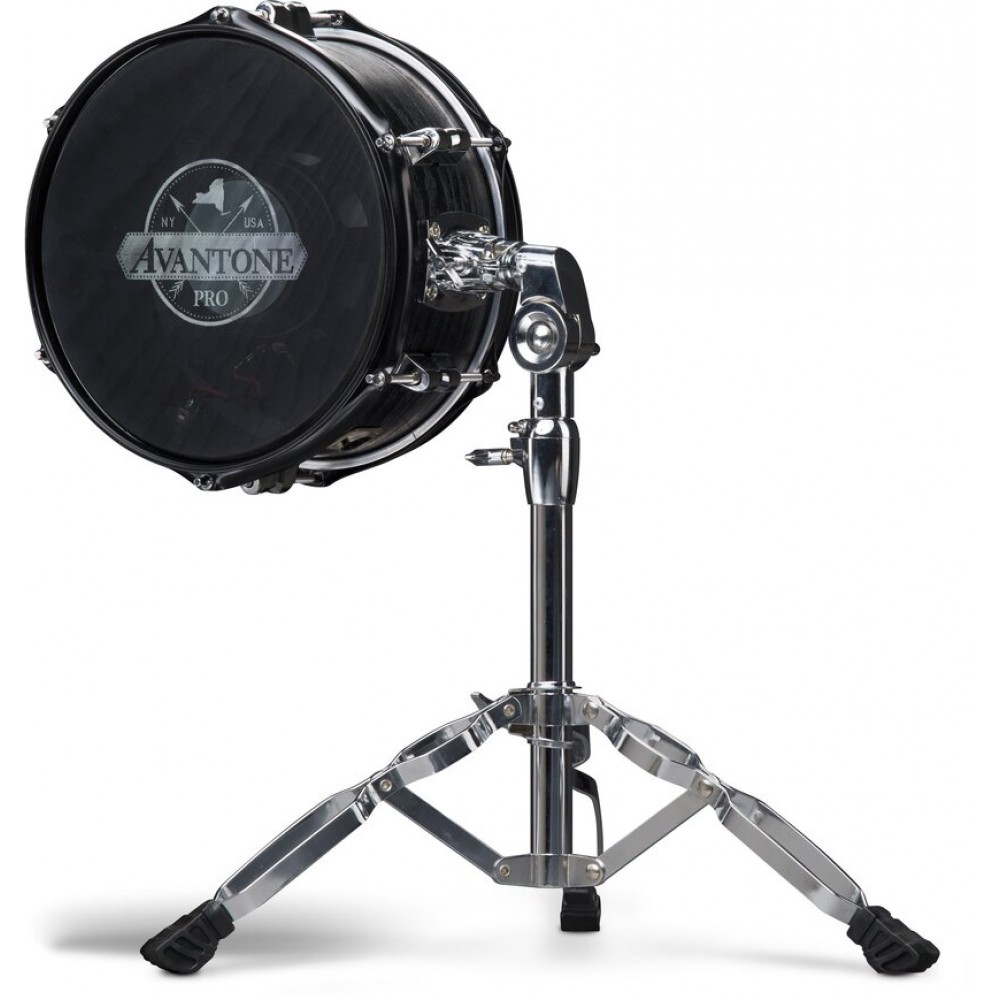

KICK
TYPE: Moving Coil Dynamic
FREQUENCY RESPONSE: 50Hz-2,000Hz
OUTPUT IMPEDANCE: 6.3 Ω
PATTERN: Figure 8
ELEMENT: AV10-MLF 18cm cone
CONNECTOR: Male XLR
SHELL: Birch Ply
DRUM HEAD: Mesh 10”
SIZE: 11.375” W; 11.375” H; 5.5” D (without stand)
WEIGHT: 3.1kg; 6.8Lbs (without stand) / 4.6kg;10.1 lbs (with stand)

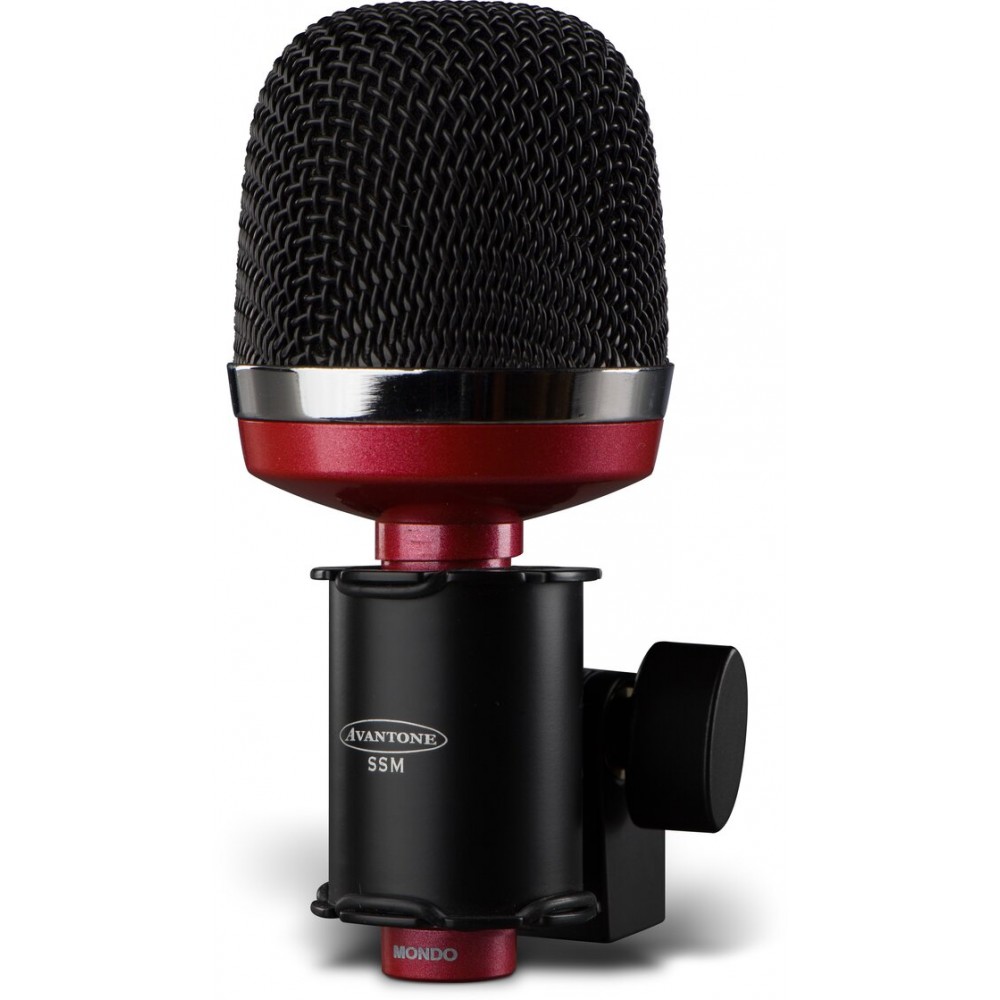

MONDO
TYPE: Dynamic
POLAR PATTERN(S): Cardioid
FREQUENCY RESPONSE: 20Hz - 15kHz
OUTPUT IMPEDANCE: 210 Ohms
MAXIMUM SPL: 145dB
OUTPUT CONNECTOR: Male XLR 3-pin
POWER REQUIREMENTS: N/A
WEIGHT: .5 kg (16 oz)
FINISH: Cabernet / Black / Nickel
