Active Mini-Reference Monitors

Tech Spec –
SYSTEM TYPE: Active (Self-powered) shielded full-range stereo pair
FREQUENCY RESPONSE: 90Hz - 17,000Hz (useful musical range)
IMPENDANCE: Nominal 8 ohms
MAX SPL: 104db @ 1 meter = 1%THD (PINK NOISE)
AMPLIFIER TYPE: Class A/B
AMPLIFIER POWER: 60 watts RMS@ .005% THD (1KHz)
AMP FREQUENCY RESPONSE: 22Hz-50KHz +0dB/- 3dB (90Hz-50KHz +/-0dB)
NOISE: S/N -113 dB
SENSITIVITY: 0dBu (.775VRMS) input at maximum volume (+6dB) = 104dB SPL
DRIVER: Proprietary design 5.25" cast aluminum frame / paper cone / shielded
CABINET: sealed / 18mm MDF / Dacron acoustical stuffing

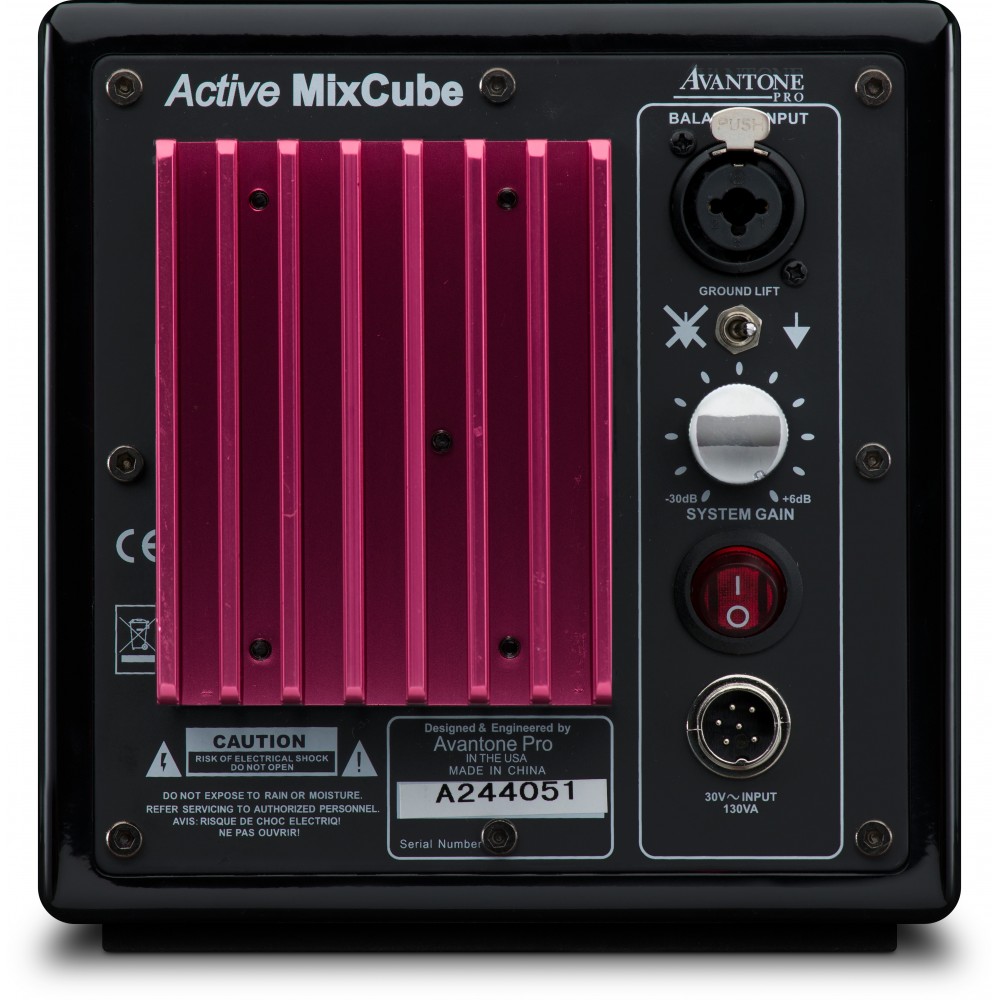

INPUTS: XLR & TRS (COMBO JACK) +4/Balanced and -10 unbalanced
WEIGHT: 7.13lbs (per monitor)
DIMENSIONS: 6.5" x 6.5" x 6.5"
