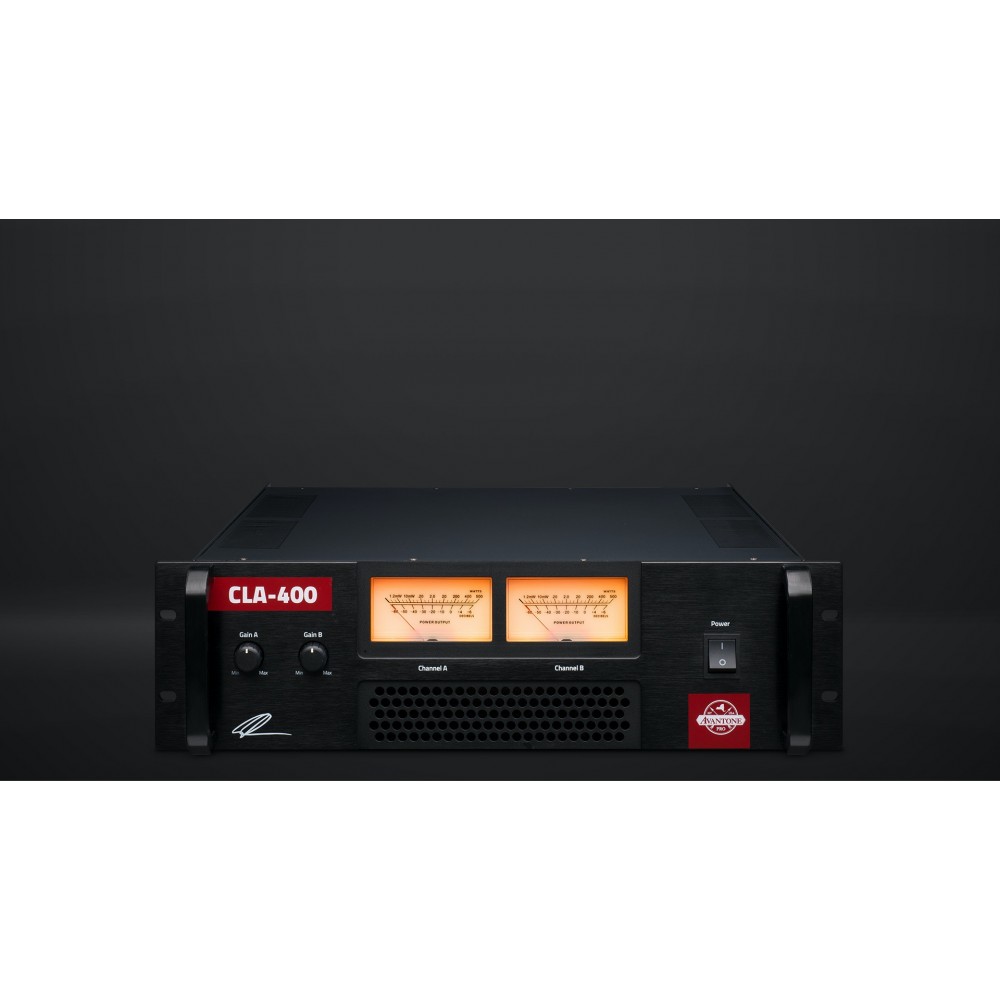

Studio Reference Amplifier

Tech Spec –
8Ω STEREO POWER (1KHZ):  360W
4Ω STEREO POWER (1KHZ):   540W
8Ω BRIDGE POWER (1KHZ):   760W
SLEW RATE (AT 1KHZ):   28V/us 
INPUT SENSITIVITY (1KHZ):   0.775V (0dBU)
TOTAL HARMONIC DISTORTION (1KHZ):  <0.1%
INTERMODULATION DISTORTION (AT 10% RATED POWER 1KHZ): <0.1%
CROSSTALK:  -70dB
FREQUENCY RESPONSE:  20Hz-20kHz +/-0.5dB
FREQUENCY RESPONSE:  20Hz-20kHz +/-0.5dB
INPUT IMPEDANCE:  (Balanced) 20KΩ (Unbalanced) 10kΩ
DAMPING FACTOR(100HZ, 8Ω):  250
SIGNAL TO NOISE RATIO (A WEIGHTED):  >103dB
AMPLIFIER:   Class AB
DIMENSIONS:  483Wx133Hx487D (19”x5.25”x18”)
WEIGHT:   22.2kg (49lb)
