Reference Dac, Pre And Headphone Amplifier

Balanced (XLR, +14dBu) and unbalanced (RCA, 2.00Vrms) output amplifiers

Wide dynamic range (>115dB rms unweighted at -60dBFS)
Low distortion (<-107dB rms unweighted at FS)
Low maximum aharmonic spuriae (<-158dB rms unweighted at FS)
Fully-balanced signal path minimises distortion artifacts and interference
Low impedance, low distortion headphone amplifier, optimised for headphone impedance
Prism Sound CleverClox hybrid PLL for ultimately low sampling jitter
Analogue circuits galvanically isolated from PSU and digital circuits to eliminate interference
High-precision digital interpolation filter
Multi-bit delta-Sigma modulator
Precise absolute / inter-channel gain matching, +/-0.05dB, includes line volume control tracking

Dimensions (L/D/H): 285 / 242 / 50mm
Weight: 2.1 kg

System requirements and Specs:
Mac OS X 10.5 Leopard or later| Class-Compliant, Plug-and-play
Windows Vista, 7, 8, 10 or later (32-bit or 64-bit)| Install included ASIO/WDM and UAC2 driver

Front Connectors:
1 x Headphone Output (¼” Jack Connector)

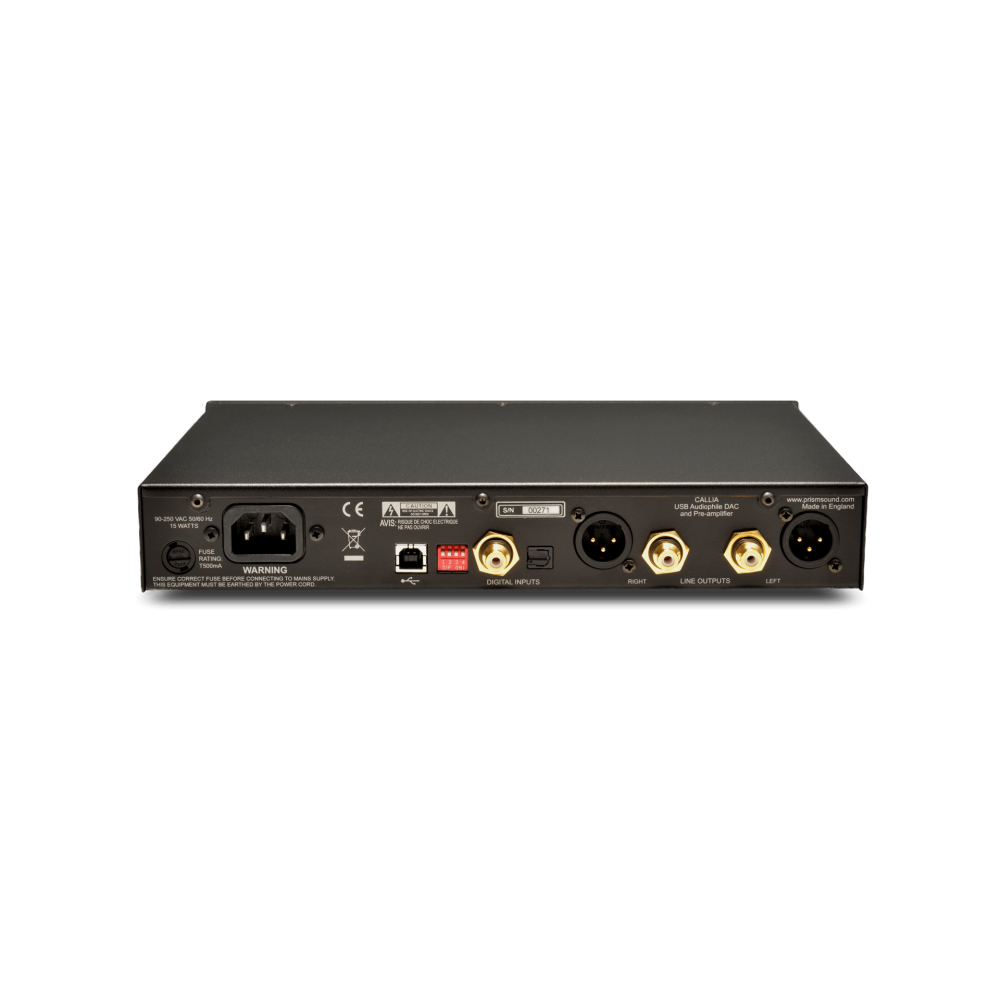

Rear Connectors:
2 x Analogue Output (XLR Connector)
2 x Analogue Output (RCA Connector)
1 x S/PDIF Input (RCA Connector)
1 x TOSLINK (Optical connector)
1 x USB-B 2.0 Port
1 x IEC port

Full Technical Specifications
