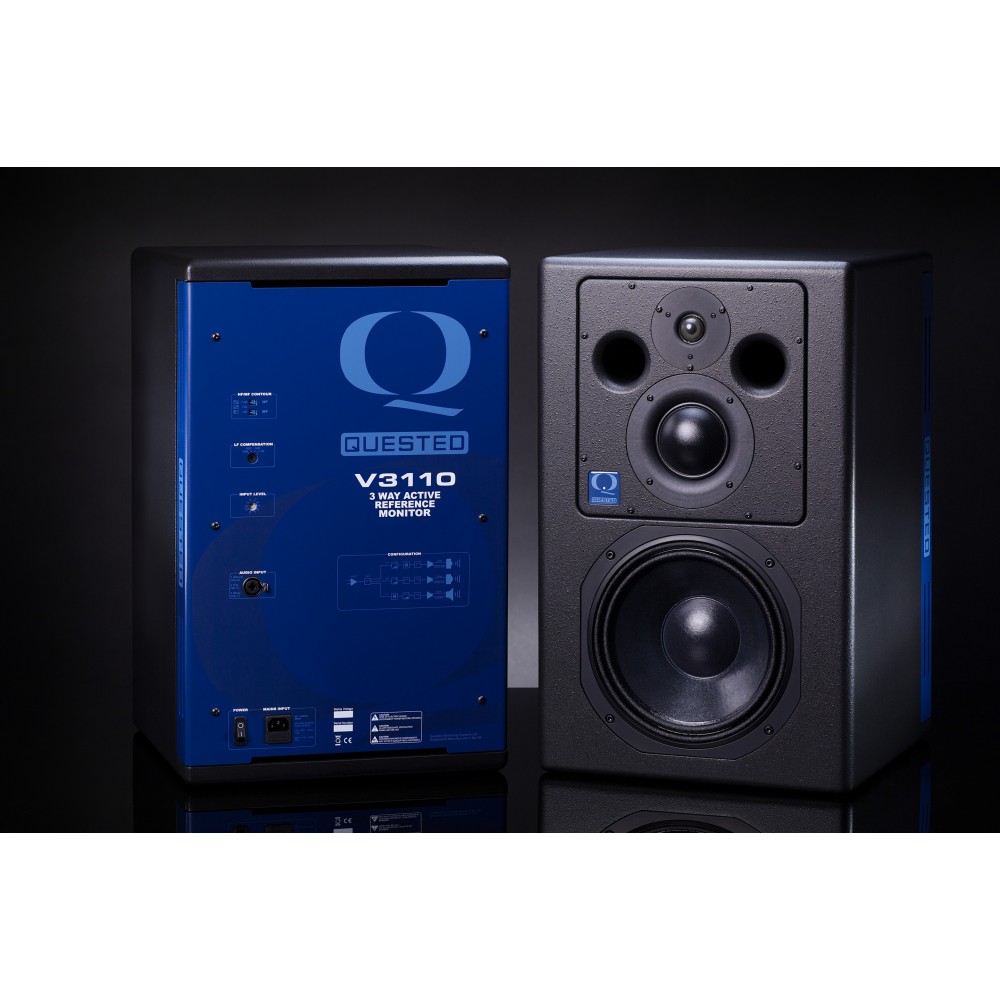

Studio Monitor Powered Midfield (1.5m-3.5m) 3 way 10”LF 30Hz Cut off 121.5dB per pair Specifications Size: 380 x 600 x 360mm (w x h x d) Weight: 39kg / 86lb Driver: Low Frequency 1 x 250mm(10″) Mid: 1 x 75mm (3”) soft dome High Frequency: soft dome 1 x 28mm (1 1/8″) Frequency Response: 34Hz – 20kHz ±2dB / 30Hz – 22kHz -6 dB Maximum SPL: 115.5 dB continuous pink noise @ 1m Leq 1 minute. 121.5 dB continuous pink noise per pair @ 1m Leq 1 minute
INPUT Connector: XLR3 type-Female Impedance: 10k Electronically balanced with RF filters Wiring: Pin 1 ground, Pin 2 hot, Pin 3 cold Sensitivity: Rear mounted 10 position rotary switch calibrated in 2dB steps Minimum sensitivity +4dBu for 100dB SPL @ 1m Maximum sensitivity -14dBu for 100 dB SPL @ 1m
FILTERS Subsonic: -3dB @ 14Hz, 24dB/oct Crossover Points: 650Hz, 2k5H, 24dB/oct. User LF EQ: 4 position rear mounted selector to select FLAT for normal use. -9dB and -3dB for cut below 100Hz, +1dB for lift above 80Hz. User MF EQ 3 position rear mounted switch to select FLAT for normal use, CUT/LIFT +/-1dB for 650Hz to 2k5Hz. User HF EQ 3 position rear mounted switch to select FLAT for normal use, CUT/LIFT +/-1dB for 2k5Hz to 40kHz.
