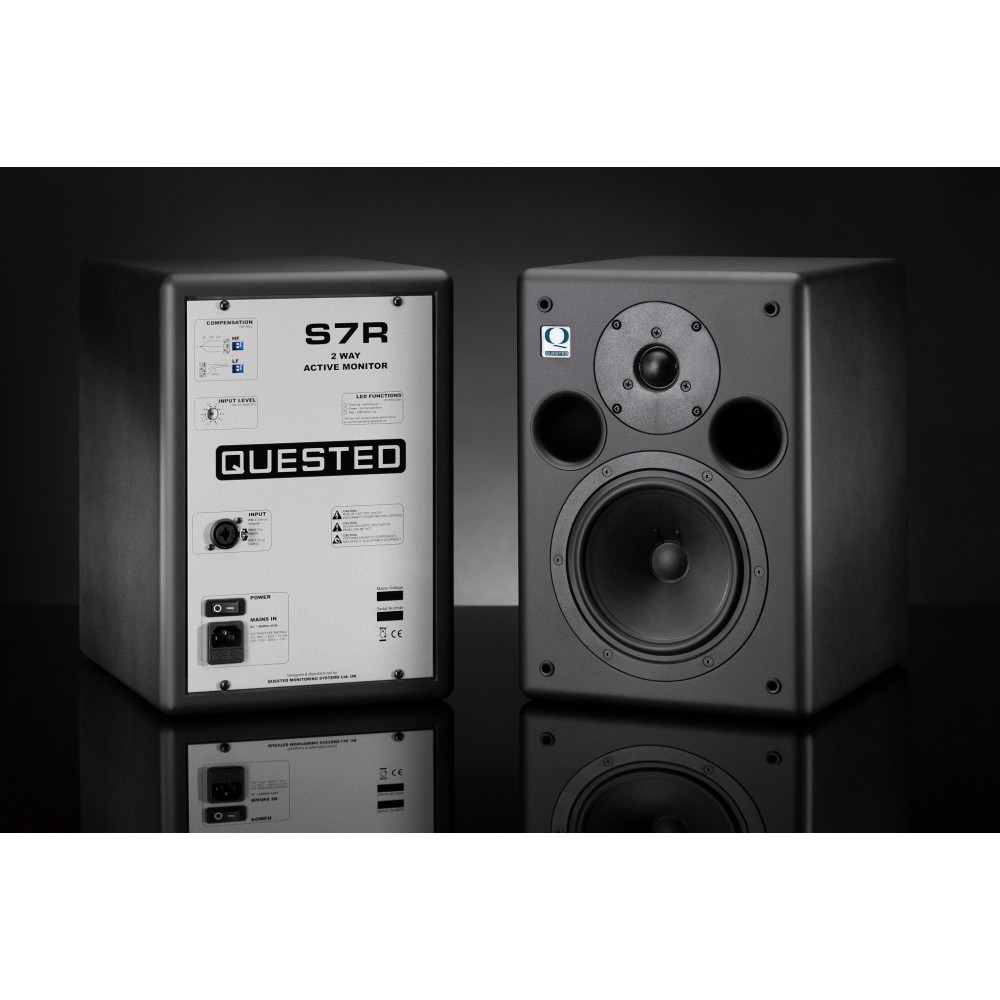

Studio Monitors Nearfield (0.5m-2m) 2 Way Powered 6.5”LF 58Hz Cut-off 111db Per Pair Specifications Dimensions: 244(w) x 347(h) x 302(d) mm Weight: 11.7 kg / 25.5 lb Drivers: Bass cone – 1 x 165 mm (6 ½”) High Frequency: Soft dome – 1 x 28 mm (1 ⅛”) Maximum SPL: 105 dB continuous pink noise @ 1 m LEQ 1 minute. 111 dB per pair pink noise @ 1m Leq 1 minute Frequency Response: 68 Hz-20 kHz ± 2 dB / 58 Hz-22kHz -6 dB Connector: XLR and ¼ inch Jack combo socket Impedance: 10k W electronically balanced with RF filters Wiring: Pin 1 ground Sleeve Pin 2 hot Tip Pin 3 cold Ring Sensitivity: -12 dBu to +6 dBu for 96 dB SPL @ 1 m set by 10 position rotary switch on rear Subsonic: -3dB @ 30 Hz, 24dB/oct Ultrasonic: -3dB @ 75kHz, 4dB/oct Crossover: 1k19 LF EQ: -2/-4 @ 65 Hz HF EQ: +/- 2dB @ 10 kHz
