500 Series 8-Slot Rack with Built-in Patchbay

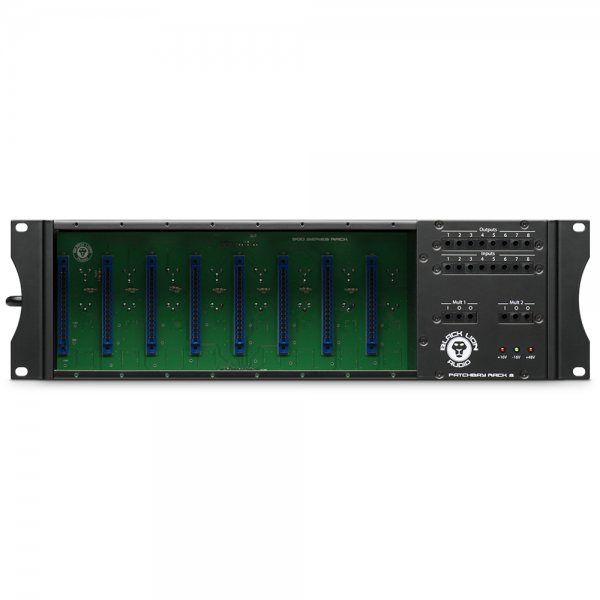

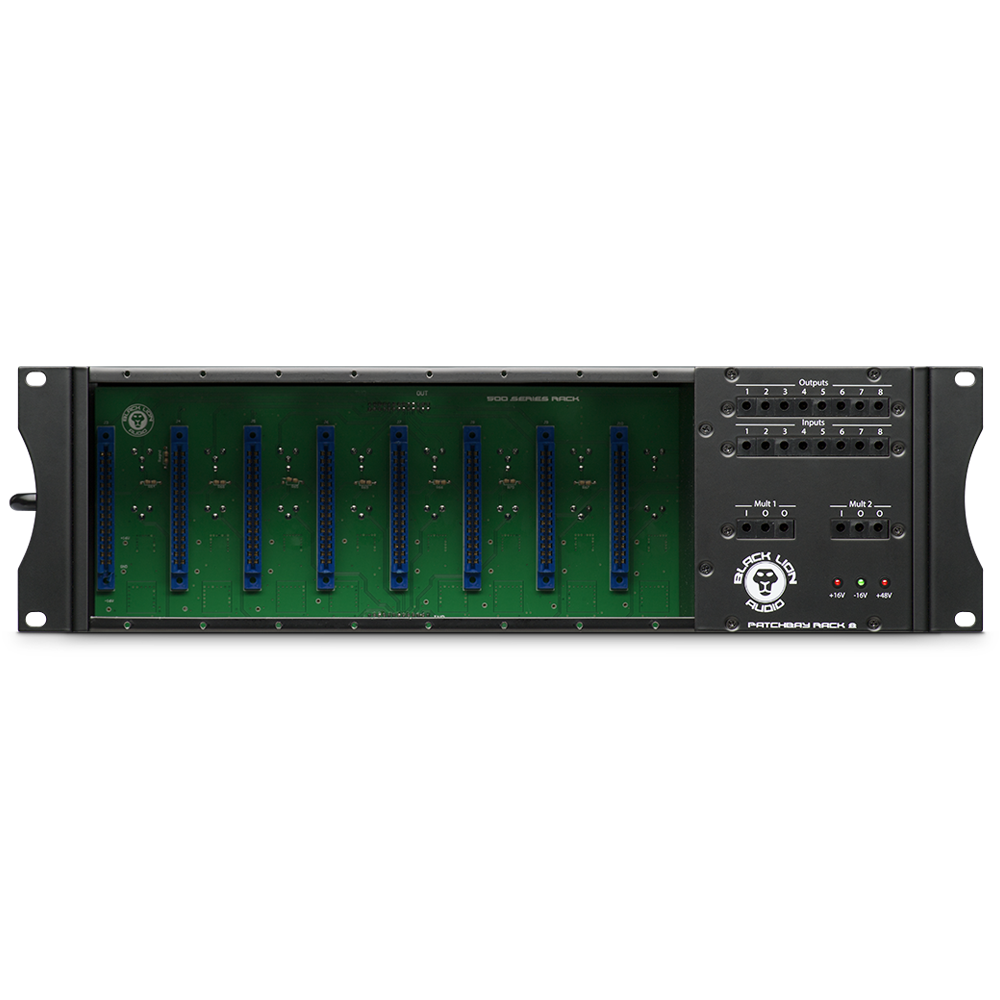

PBR-8 – 500 Series 8-Slot Rack with Built-in Patchbay (Patented Black Lion Technology)
Equipped with a fully balanced TT/Bantam patchbay, the PBR-8 is an 8-slot 500 Series chassis with unlimited routing options for quickly dialing in sounds without your modules having to be mounted in any particular order. With the PBR-8, you can easily audition a signal chain, re-route it, split it via one of the patchbay mults, send it to modules in another rack, route it back, then output it — all from the PBR-8’s front panel.

Product Features/Specifications:
Patented Black Lion Technology
500 Series chassis with fully balanced TT/Bantam patchbay
Heritage Audio On Slot Technology ensures clean, isolated power with plenty of current for each slot
Maximum audio rails current: 1.8A per rail, or 400mA per rail per slot, whatever is reached first
Maximum phantom power current: 140mA
Operating voltage: 100–240VAC
Gold-plated XLR I/O

Note: Please use the M3 screws included with the PBR-8 for installing 500 Series modules. Using 4-40 screws will result in stripping the chassis.

Technical Specifications:
Link:
Rack Height:
3 RU

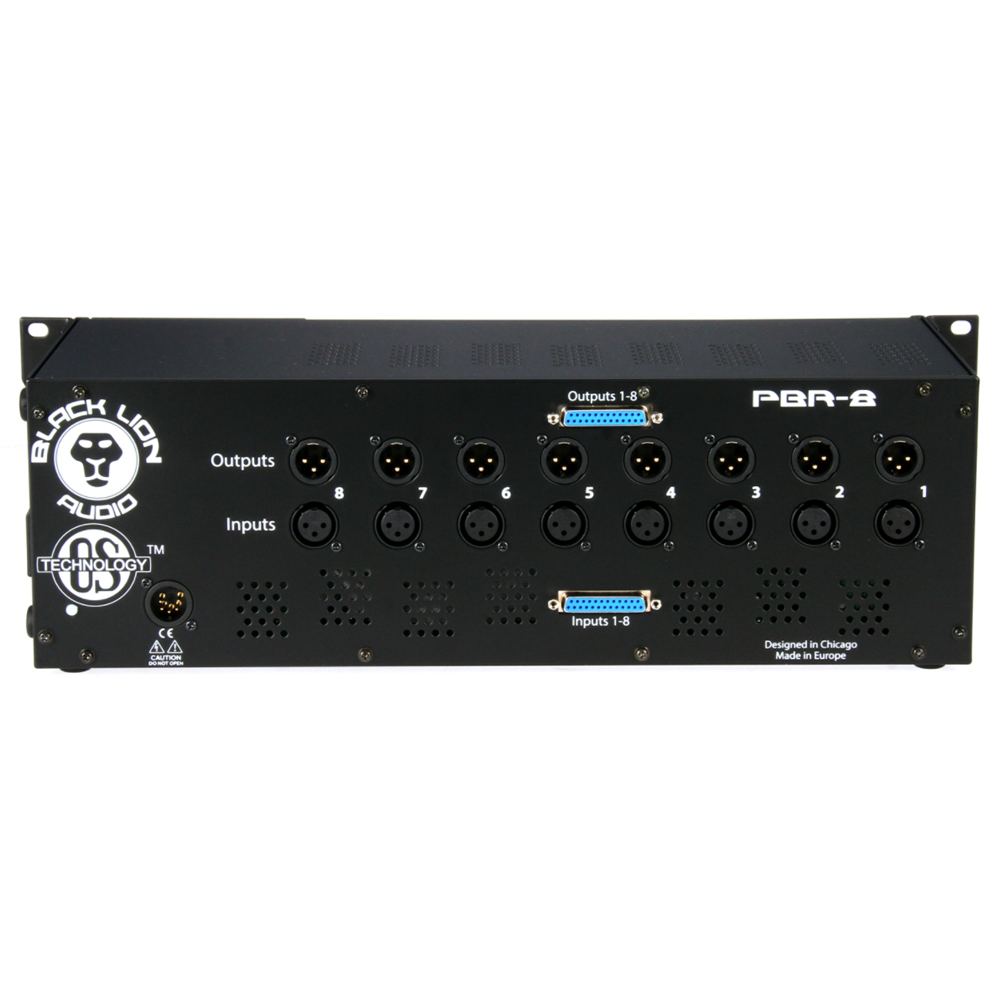

Inputs:
8 x XLR 3-pin female jacks
1 x DB25 connector
8 x TT/Bantam jacks
Outputs
8 x XLR 3-pin male jacks
1 x DB25 connector
8 x TT/Bantam jacks
Mults
2 x 3-point mults (three TT/Bantam jacks per mult)
Maximum Current
Audio Rails: 1.6 A per rail or 400 mA per rail per slot (whichever is reached first)
Power Requirement
External power supply via XLR 5-pin jack
