Mic Pre

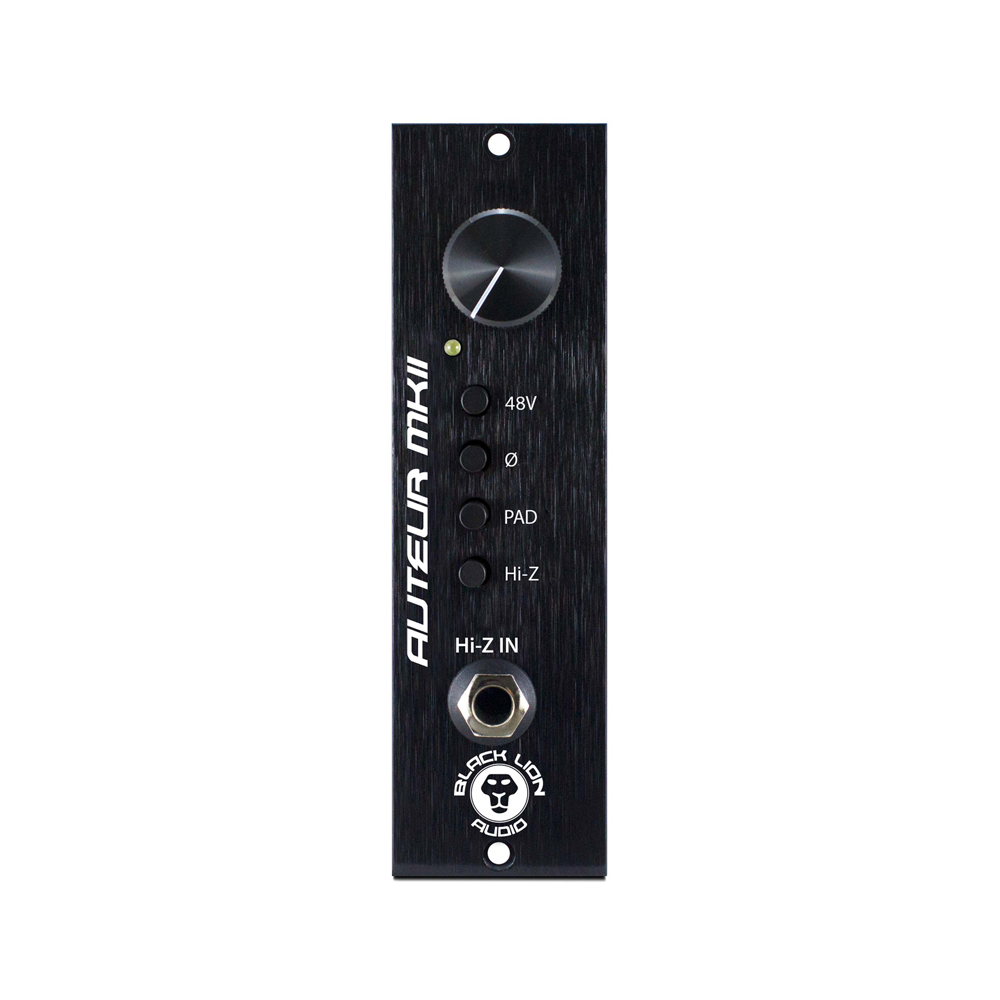

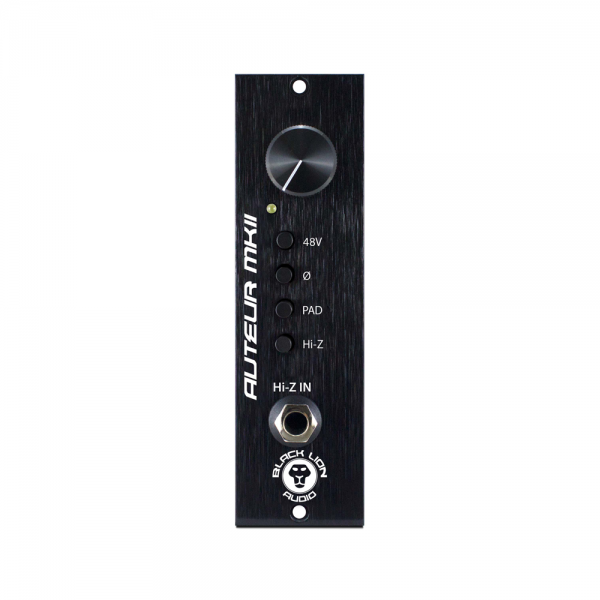

The Auteur MKII 500 is a single channel, 500 series preamp that features phantom power, phase, a 13dBu pad, and a Hi-Z input.


Product Features/Specifications:
500 Series format (500 series rack required)
Single Channel
Ultra High-Speed Input Stage
Edcor Output Transformer
67dB Gain
Phantom Power
Phase Switch
13dBu Pad
Hi-Z Input

Technical Specifications:
Link:
https://www.blacklionaudio.com/store/500-series-racks/auteur-mkii-500-mic-pre/#specs

Mic Section
Max Microphone Input Level: +1dBu
Input Impedance: 6000Ω
Pad: 13dBu
Gain (no pad): +16dB to +67dB
Equivalent Input Noise (noise floor): -108dBu
THD+N (@ +4dBu output):
.0046% @ +12dBu Gain
.0064% @ +24dBu Gain
.012% @ +32dBu Gain
.028% @ +40dBu Gain
.085% @ +50dBu Gain
.3% @ +62dBu Gain
Bandwidth (1kHz, 600Ω unbalanced source, unweighted): 10Hz to 30kHz
D.I. Section
Max D.I. Input Level: +18dBu
Input Impedance Balanced: 2.2MΩ
Input Impedance Unbalanced: 1.1MΩ
Pad: 13dBu
Gain: +16dB to +67dB
Equivalent Input Noise (noise floor): -82dB
THD+N (@ +4dBu output):
.007% @ +12dBu
.11% @ +40dBu
Bandwidth (1kHz, 600Ω unbalanced source, unweighted): 10Hz to 30kHz
Output Section
Max Output Level: +28dBu
Output Impedance: 600Ω
Power Supply
+/- 15v from 500 series rack
Product Dimensions
1.5” x 6.5” x 5.25”
Product Weight
.8 lbs
Shipping Dimensions
13” x 13” x 5”
Shipping Weight
3 lbs
