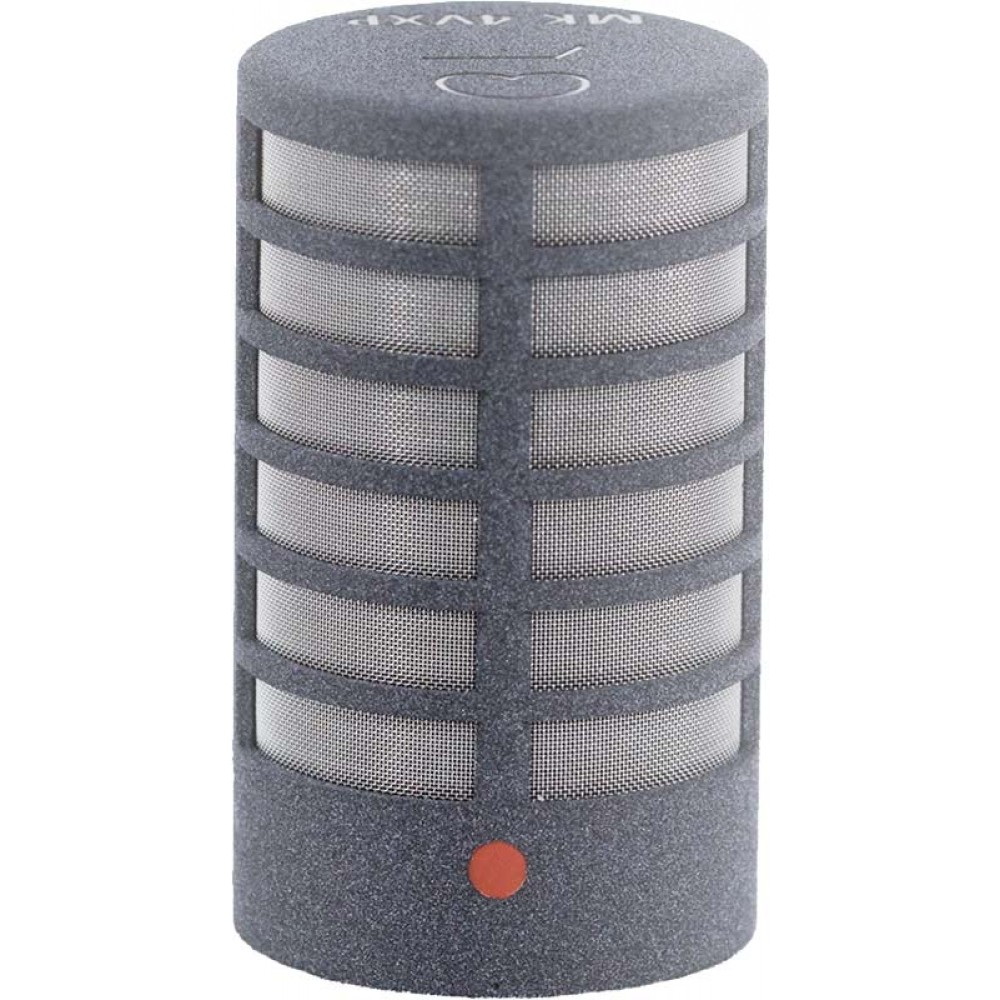

• Microphone capsule for close pickup

• Cardioid, side-addressed for very close speech pickup (<10 cm)

• Low-frequency response rolloff (-10 dB at 100 Hz)

• Polar diagram identical as the MK 4V

• Preferred applications: close speech pickup, also available in the HSC 4VXP headset

Tech Spec –

Pickup pattern :Cardioid

Frequency range : 40 Hz - 19 kHz with CMC 6 / CMR,

40 Hz - 39 kHz with CMC 6xt

Sensitivity :-38,5 dB (V/Pa), 12 mV/Pa with CMC 6

Equivalent noise level (A-weighted) :14 dB with CMC 6

Equivalent noise level (CCIR) :24 dB with CMC 6

Signal-to-noise ratio (A-weighted) :80 dB with CMC 6

Maximum sound pressure level (THD < 0.5 %) :133 dB-SPL with CMC 6

Length :34 mm

Diameter :20 mm

Weight :18 g

Surface finish :matte gray
custom color: nickel, chromagreen
