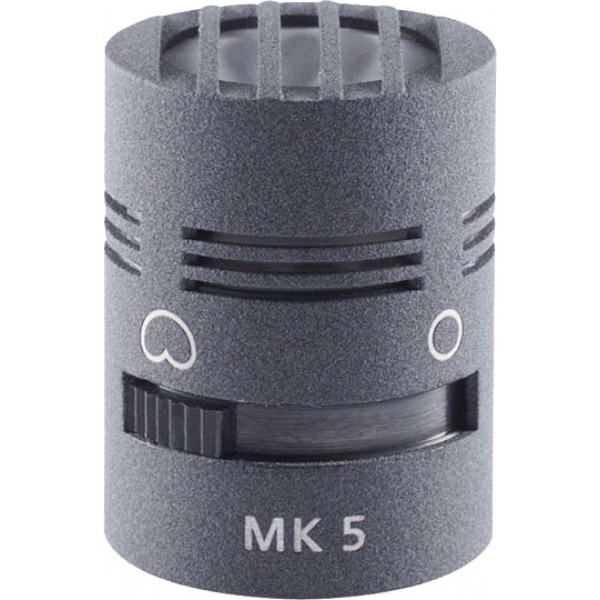

• Microphone Capsule

• mechanical switching between omnidirectional and cardioid patterns

• true one-diaphragm system (unique on the microphone market)

• pure pressure transducer in the omni setting; pressure gradient transducer in the cardioid setting

• can be used in nearly any situation; often suggested as an initial acquisition. Popular with training institutes

Tech Spec –

Pickup pattern :Omnidirectional

Frequency range :20 Hz - 28 kHz with CMC 6 / CMR

20 Hz - 43 kHz with CMC 6xt

Sensitivity :-38,0 dB (V/Pa), 12 mV/Pa with CMC 6

Equivalent noise level (A-weighted) :12 dB with CMC 6

Equivalent noise level (CCIR) :24 dB with CMC 6

Signal-to-noise ratio (A-weighted) :82 dB with CMC 6

Maximum sound pressure level (THD < 0.5 %) :132 dB-SPL with CMC 6

MECHANICAL SPECIFICATIONS

Length :27 mm

Diameter :20 mm

Weight :25 g

Surface finish :matte gray
custom color: nickel, chromagreen
